Locking elements

FTV 320 * Escape door lock for doors in rescue routes

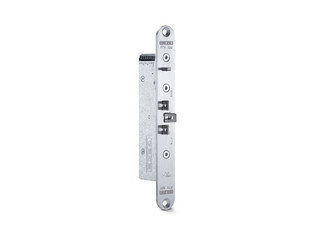

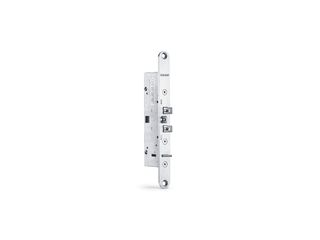

FTV 320 with face plate Innovative mechanics for locking doors in rescue routes
  • Unique cross latch mechanism guarantees secure locking
  • Integrated feedback contact ensures reliable monitoring of the door
  • Integrated sabotage monitoring secures the lock against manipulation
  • Variety of face plates and accessories offers a solution for almost every door situation
Contact us

Application Areas

  • EltVTR-compliant locking of an emergency exit to prevent unauthorised access
  • Single and double leaf doors
  • Installation in the frame or the door leaf ensures a tidy appearance
  • Can be used for numerous other safety solutions that require a fail-safe principle

Technical data

FTV 320
Width 15 mm
Height 138 mm
Depth 37 mm
Type of installation in the door frame, in the door leaf
Service temperature -20 - 60 °C
IP rating IP30
Operating voltage 24 V DC
Current consumption 100 mA
Conforms to the EltVTR (guidelines for electronic locking systems) Yes
Conforms to EN 13637 Yes

Variants & Accessories
