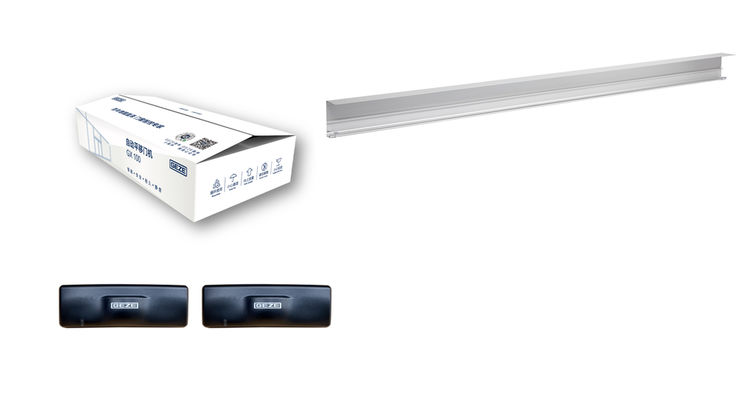

ECdrive
GX 100 * Automatic linear sliding door drive for doors with up to 100 kg leaf weight
- Single and double leaf sliding door systems
- Opening widths from 700 to 3000 mm possible
- For doors up to 100 kg leaf weight per leaf
Application Areas
- Designer guide rails with dampening rubber strip ensure smooth and quiet operation
- Operation and parameter setting for the DCU via Bluetooth over WeChat
- Quick and easy installation thanks to modular design
- Fall protection version of the roller carriages
- Self-adjusting roller carriage
- Standard conformity: GB34616-2017 and JG305-2011

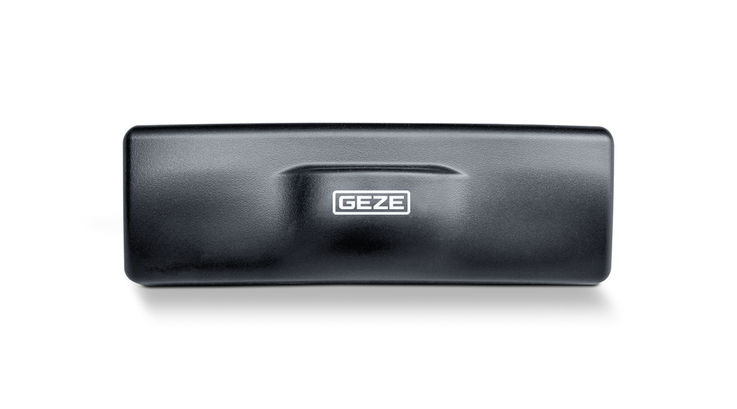

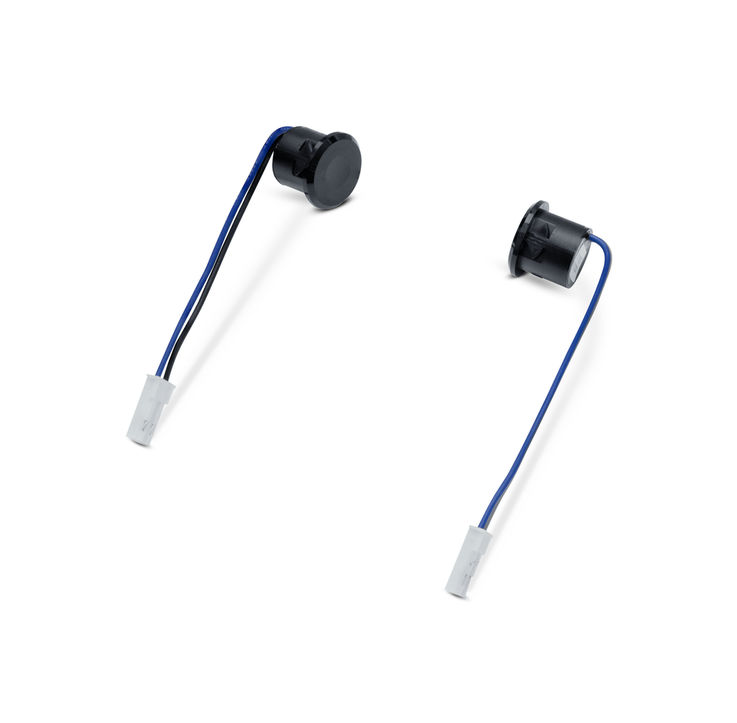

- Two pairs of photoelectric barriers optionally available
- Tested on over 100000 test cycles
Technical data
| GX 100 | |
| Height | 125 mm |
| Depth | 86 mm |
| Clear passage height | 3000 mm |
| Service temperature | -20 - 50 °C |
| IP rating | IP20 |
| Power consumption | 150 W |
| Opening speed (max.) | 0.5 m/s |
| Closing speed (max.) | 0.5 m/s |
| Hold-open time | 0.5 s - 60 s |
| Locking force (max.) | 150 N |
| Self-learning | Yes |
| Mode of operation | Night, Permanently open, Automatic |
| Type of function | Access control |
| Automatic reversing | Yes |
| Pharmacy opening | Yes |
| Interlocking door system function | Yes |

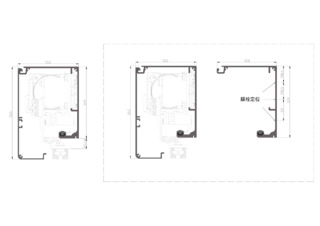

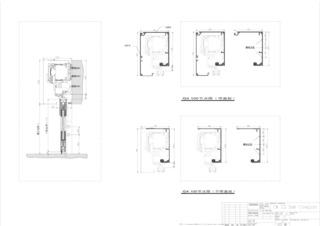

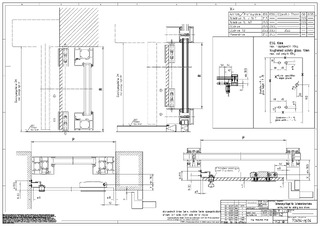

Downloads
GX 100
LABELLING OBLIGATION: © GEZE GmbH

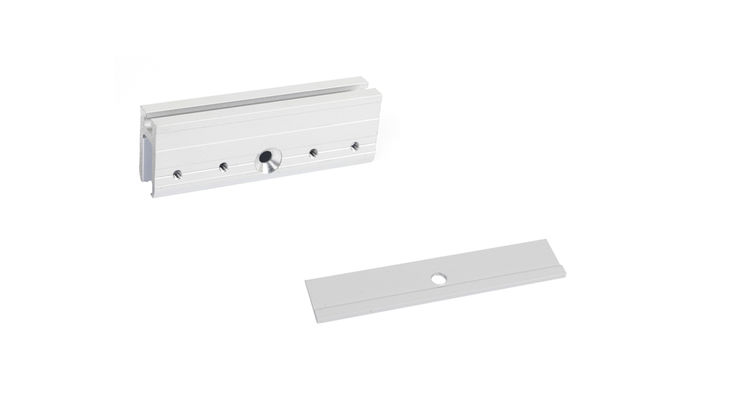

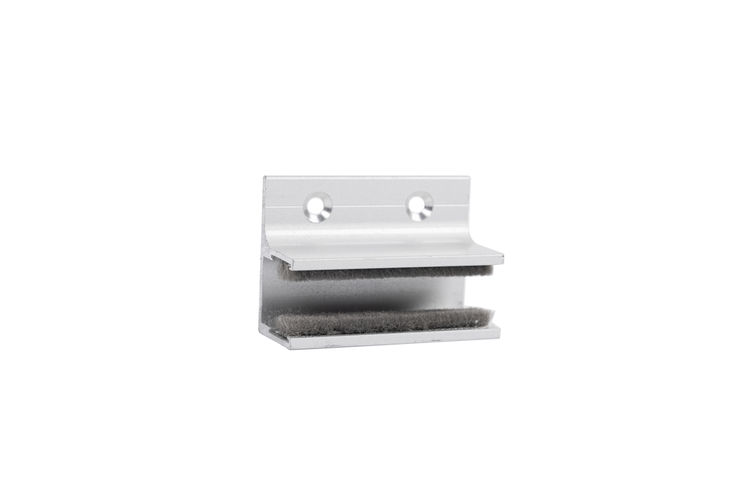

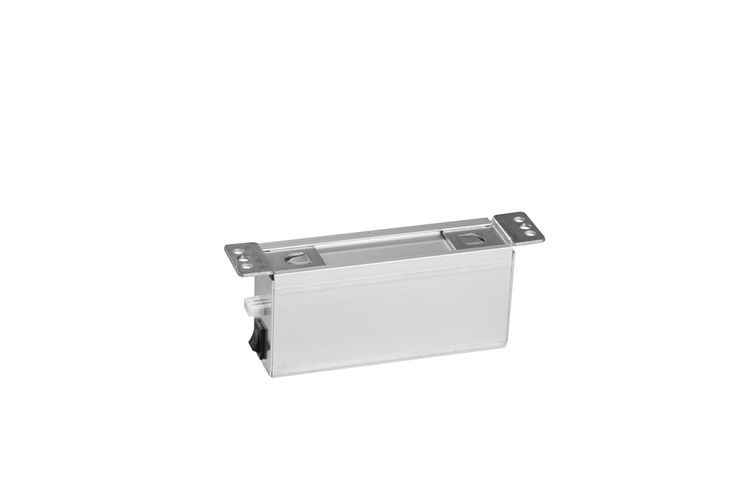

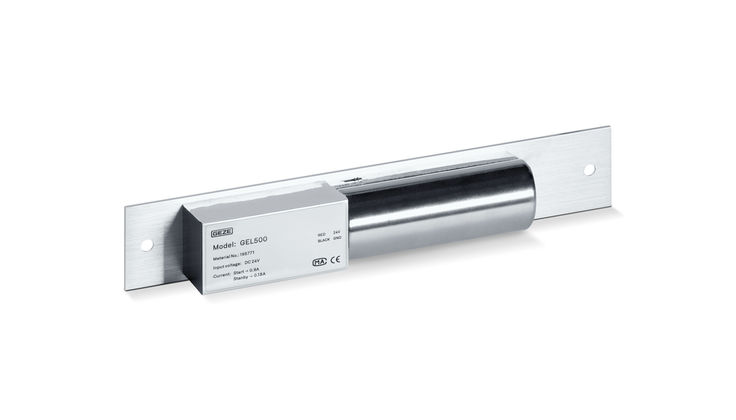

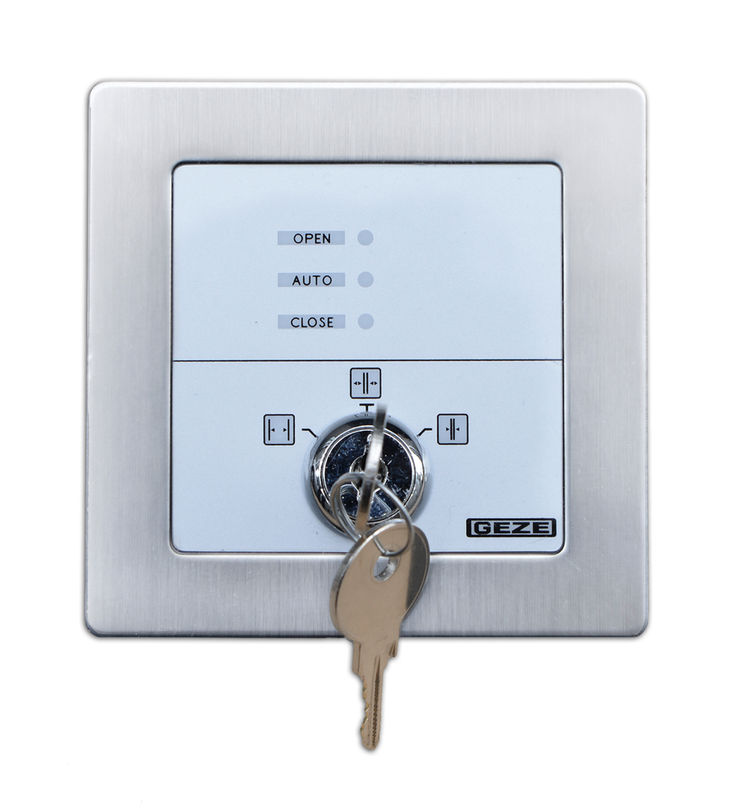

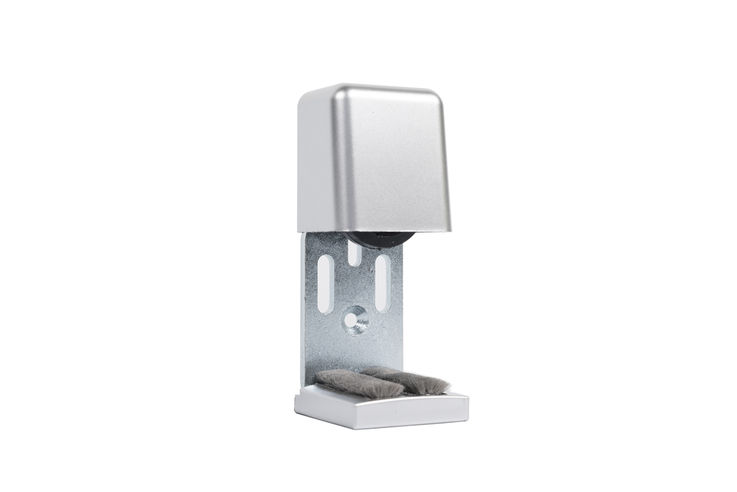

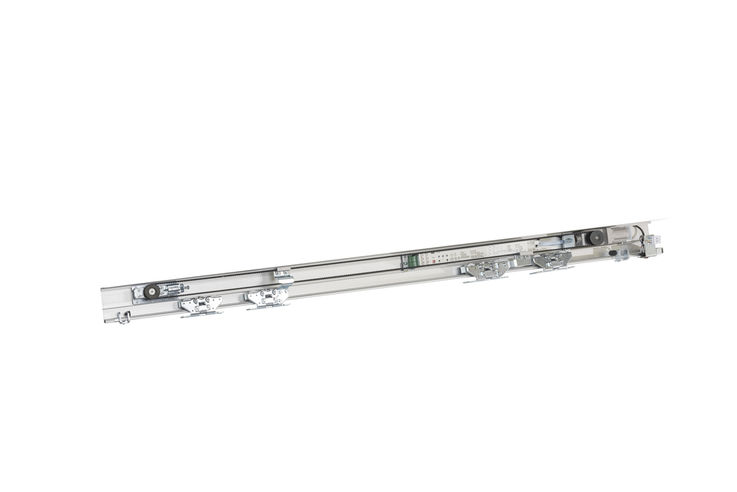

Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
