Slimdrive

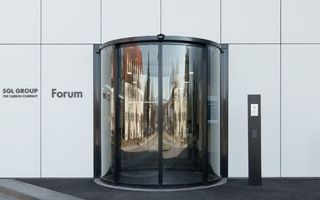

Slimdrive SC-FR RC2 * Automatic curved sliding door system for escape and rescue routes with burglar resistance in accordance with resistance class 2

  • Escape route function with redundant drive design
  • Certified burglar resistance according to resistance class RC2
  • RC2 function is only available in "night" mode of operation, as the door no longer needs to meet escape route requirements.
  • Equipped with a rod locking and reinforced profile components
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • 40 % more opening width than with linear sliding door drives
Show more
  • Various drive variants possible, e.g. double entrance, corner door, arc, semicircle
  • Can be networked via CAN bus and integrated into building technology management systems
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Automatic curved sliding door system for escape and rescue routes with burglar resistance in accordance with resistance class 2

Application Areas

  • Single and double leaf door systems in escape and rescue routes
  • Interior and exterior doors with maximum safety requirements
  • Representative building entrances with large incidence of light
  • Façades with slim post-rail constructions
  • Glass façades with the highest design standards
  • Vestibule systems, in combination with linear sliding doors
  • Opening widths of 800 to 3000 mm possible
  • Door leaf weights up to maximally 120 kg

Technical data

Slimdrive SC-FR RC2
For escape and rescue routes Yes
Barrier-free Yes
Adjustable opening speed (ventilation) Yes
Adjustable closing speed Yes
Opening width 2-leaf 800 mm - 2500 mm
Clear passage height 3000 mm
Canopy height (min.) 75 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Radius (min.) 1350 mm
Moving leaf version 10 mm LSG, Special glass on request
Side elements version 10 mm LSG, Special glass on request
Surface Powder-coated according to RAL, Anodised light alloy E6/EV1, colour anodised according to sample, special coating on request
Version of roof structure optical sheet metal covering, waterproof roof with waterspout
Illumination with roof variant
Floor covering Entrance mat, Floor mat according to customer wishes
Hot-air curtain system possible, depends on the ceiling construction
Special functions on request Yes
Operation Programme switch DPS, Programme switch TPS, Control via building management system
Approvals DIN 18650, EN 16005
