KFT elbow switch * Plastic elbow switch, IP rating IP20, for activation of automatic doors
- IP rating IP20
- Very flat design with a height of 180 mm
- Large push switch for activation even with elbows
- Optional expansion with transmitting module
- Optional back plate for adhering to smooth surfaces like glass
Application Areas
- Activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Inside
- Surface-mounted installation
Technical data
KFT elbow switch | |
Dimensions | 90 x 179 x 23 mm |
Switching voltage | 24 V DC |
Switching current | 1 A |
IP rating | IP20 |
Type of installation | Surface-mounted |
Material | Plastic |
Service temperature | -20 - 85 °C |

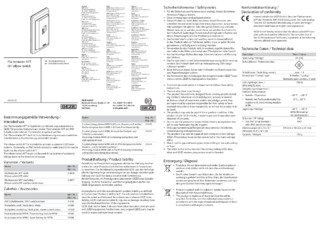

Downloads
