GC 302 * Radar movement detector for the activation of automatic doors

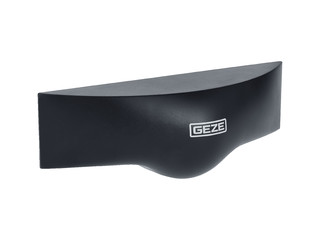

GEZE 302 Radar movement detector for the activation of automatic doors, with direction detection
  • Convenient commissioning with pre-programmed settings
  • Configuration possible via push buttons or remote control
  • Clearly defined radar field (narrow or wide field) with reliable detection
  • Integrated motion tracking also records slow movements
  • Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
  • Door opening impulse only triggered if needed
Contact us

Application Areas

  • Activation of automatic swing, sliding, folding, revolving and curved sliding doors
  • Interior and exterior doors

Technical data

GC 302

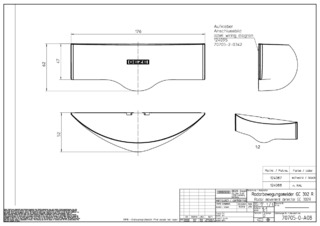

Dimensions 176 x 62 x 52 mm
Technology Electromagnetic radar waves
Operating voltage 12-36 V DC / 12-28 V AC
Switching voltage 48 V
Switching current 1 A
Operating current 50 mA
IP rating IP54
Connection type Plug-in screw terminal
Connector cable length 5000 mm
Installation height (max.) 4000 mm
Transmission frequency 24.125 GHz
Weight 150 g
Service temperature -20 - 60 °C
Humidity 0-90 % relative, non-condensing
