Slimdrive EMD 1-leaf swing door drive system
Slimdrive EMD drive unit * Electromechanical swing door drive with only 7 cm height for single leaf doors up to 180 kg
- Opening and closing speed can be individually adjusted
- Electrical latching action which accelerates the door shortly before the closed position
- The low-energy function opens and closes the door at a reduced speed, thereby meeting the highest safety standards
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and the door returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
Application Areas
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1400 mm leaf width and 180 kg weight
- Interior and exterior doors with high access frequency
- Door leaf installation and transom installation
Technical data
| Slimdrive EMD drive unit | |
| Height | 70 mm |
| Width | 650 mm |
| Depth | 121 mm |
| Leaf weight (max.) 1-leaf | 180 kg |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf | 1500 mm - 2800 mm |
| Leaf width (min.-max.) | 750 mm - 1400 mm |
| Reveal depth (max.) | 400 mm |
| Door overlap (max.) | 30 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 130 ° |
| DIN left | Yes |
| DIN right | Yes |
| Transom installation opposite hinge side with link arm | Yes |
| Transom installation opposite hinge side with roller guide rail | Yes |
| Transom installation hinge side with roller guide rail | Yes |
| Door leaf installation hinge side with roller guide rail | Yes |
| Electrical latching action | Yes |
| Electrical closing sequence control | Yes |
| Disconnection from mains | Main switch in the drive |
| Activation delay (max.) | 20 s |
| Operating voltage | 230 V |
| Power rating | 120 W |
| Power supply for external consumers (24 V DC) | 1000 mA |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Mode of operation | Off, Automatic, Permanently open, Shop closing, Night |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Low-energy function | Yes |
| Key function | Yes |
| Vestibule function | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | Programme switch DPS, Programme switch integrated in the drive |
| Parameter setting | GEZEconnects (PC + Bluetooth), Service terminal ST 220, Programme switch DPS |
| CAN Bus interface optional | Yes |
| Standard conformity | DIN 18650. EN 16005 |
Downloads

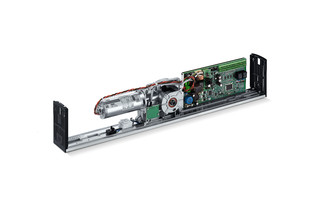

Product shot
Exchange Driven Slimdrive EMD
LABELLING OBLIGATION:
© GEZE GmbH
Product data sheet

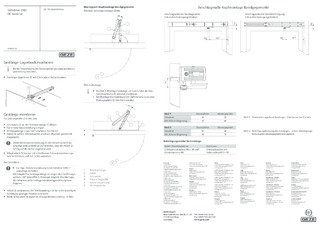

Installation instructions
