Free swing door closer 2-leaf

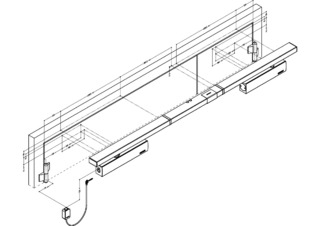

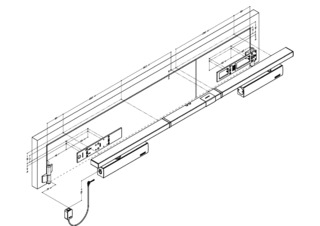

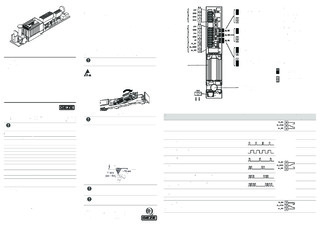

TS 5000 R-ISM/S with free swing function * Overhead door closer system with guide rail for double leaf doors with integrated closing sequence control, free swing function on the active leaf, electric hold-open on the passive leave and integrated smoke switch

Overhead door closer with guide rail system TS 5000 ISM Door closer for double leaf doors with closing sequence control and with integrated back check, which causes the strongly opened doors to be slowed down.
  • System comprising TS 5000 E Hy 3-6 and TS 5000 and R-ISM/S guide rail with hold-open unit on the passive leaf
  • Passive leaf with TS 5000 with closing force EN2-6 or TS 5000 ECline with closing force EN3-6
  • Active leaf with TS 5000 E Hy (24 V) and adjustable closing force EN3-7
  • The passive leaf is electrically held open in the guide rail, hold-open area 80°-130°
  • Active leaf held open via free swing door closer
  • Comfort hold-open function on the active leaf to latch the door at the maximum opening angle
Show more
  • Operating voltage 230 V AC
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left double leaf single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
  • Minimum hinge clearance 1500 mm, minimum width of the active leaf 875 mm and of the passive leaf 400 mm
  • Hold-open systems with integrated hold-open device on passive leaf and integrated smoke switch
  • Door leaf installation hinge side

Technical data

TS 5000 R-ISM/S with free swing function
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1400 mm
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side
Opening angle (max.) 180 °
Input voltage 230 V AC
Frequency of supply voltage 50 Hz
Minimum hinge clearance 1500 mm
Minimum passive leaf width 400 mm
Suitability for fire protection doors Yes
Free swing area 85 ° - 160 °
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Electrical
Hold-open device on the active leaf / passive leaf Yes / Yes
Hold-open range 80 ° - 130 °
Smoke switch integrated Yes
Closing sequence control integrated Yes
