TS 3000 EC

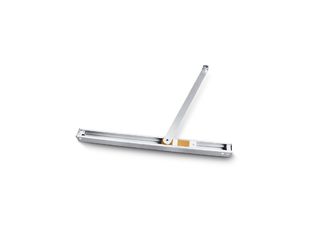

T-Stop guide rail BG TS 3000 / 5000 * With opening restrictor and lever, opposite hinge side

T-Stop guide rail BG
  • Easy to replace with the standard guide rail for opposite hinge side
  • Saves time as no floor mounted door stopper needs to be installed
  • With screwed slide block
Contact us

Application Areas

  • Single leaf doors
  • Installation on the opposite hinge side
  • Right and left single-action doors
  • For opening restriction without door stopper

Technical data

T-Stop guide rail BG TS 3000 / 5000
Length 452.5 mm
Width 33 mm
Height 30 mm
Opening restrictor integrated Yes
Hold-open function Optional
Hold-open device can be overridden Yes
