TS 1500 G with hold-open

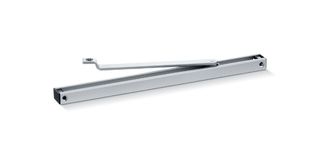

Guide rail TS 1500 G/F * with mechanical hold-open device and lever

Guide rail TS 1500 G
  • Quick installation due to clip-on slide block
Contact us

Application Areas

  • Single leaf doors
  • Installation on the hinge or opposite hinge side (only limited door leaf thicknesses)
  • Right and left single-action doors
  • To hold open non-fire protection doors

Technical data

Guide rail TS 1500 G/F
Length 390 mm
Width 30.5 mm
Height 20.5 mm
opening restrictor upgradable Yes
Hold-open function Mechanical
Hold-open device can be overridden Yes
Hold-open range 80 ° - 130 °
