TS 5000 L-E

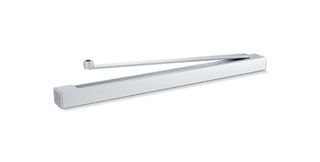

E guide rail TS 5000 BG * With electric hold-open device and lever for the opposite hinge side

E-guide rail BG TS 5000
  • Operating voltage 24 V DC
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Height compensation of +/- 2 mm possible
  • With screwed slide block
Contact us

Application Areas

  • Single leaf doors
  • Hold-open systems with integrated hold-open device
  • Installation on the opposite hinge side
  • Right and left single-action doors

Technical data

E guide rail TS 5000 BG
Input voltage 24 V DC
Electrical power consumption 2.4 W
Duty rating 100 %
Residual ripple 20 %
IP rating IP43
Standard conformity EN 1155
Length 498.5 mm
Width 40 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Electrical
Hold-open device can be overridden Yes
Hold-open range 80 °
Height correction possible Yes
Flexible opening restrictor Yes
