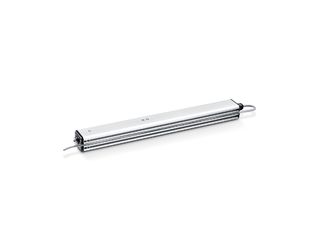

E 350 N * Spindle drive in 230 V version with extensive bracket programme

E 350 N – spindle drive Electric spindle drive as direct opener
  • Compact design
  • Versatile thanks to extensive bracket programme
  • Robust design with mechanical load cut-off and IP rating IP65
Contact us

Application Areas

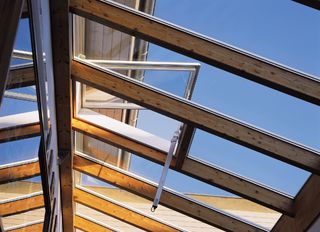

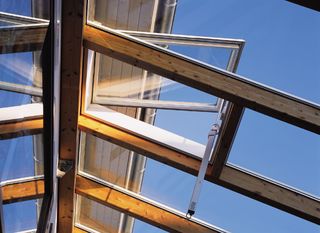

  • Direct opener for natural ventilation (230 V) in the façade and roof area
  • Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
  • Installation on wooden, PVC or metal windows

Technical data

E 350 N
Dimensions 40 x 47 mm
Opening speed ventilation 5 mm/s
Force of pressure (max.) 750 N
Holding force (max.) 2000 N
Compressive force 750 N
Voltage at operation 230 V ± 10 %
Operating voltage 230 V
Current consumption 0.15 A
Power consumption 35 W
Duty rating 50 %
Connector cable length 2.5 m
Min. core cross section 0.75 mm²
Number of cores 3 cores
Service temperature -20 - 70 °C
IP rating IP65
protection rating II
Type of stroke shortening Factory setting
End position cut-off extended mechanical overload cut-off
End position cut-off retracted mechanical overload cut-off
Overload cut-off Yes
Bottom-hung window INWARD-opening frame installation Yes
Bottom-hung window INWARD-opening leaf installation Yes
Bottom-hung window OUTWARD-opening frame installation Yes
Side-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening door leaf installation Yes
Side-hung window OUTWARD-opening frame installation Yes
Top-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening leaf installation Yes
Top-hung window OUTWARD-opening frame installation Yes
OUTWARD-opening roof window Yes
