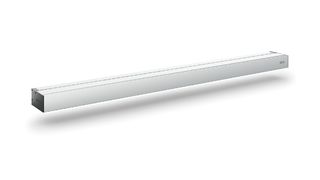

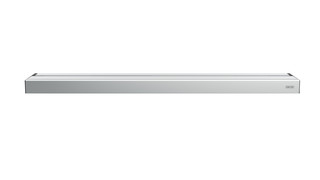

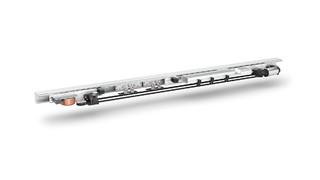

ECdrive T2 * Automatic linear sliding door system for doors up to 140 kg leaf weight

ECdrive T2 / ECdrive T2-FR

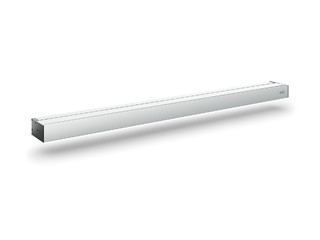

  • Slim design with a cover height of just 100 mm for greater creative freedom
  • With double roller carriage and GCprofile Therm up to 140 kg leaf weight
  • Connectivity via GEZE Cockpit
  • Efficient installation thanks to pre-drilled tracks and elongated holes
  • Full floor guide available for controlled diversion of rainwater
  • Integrated line-feeds make cable laying easier
Show more
  • Can be networked via CAN bus and integrated into building technology management systems
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated battery for emergency opening and closing in the event of a power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
  • Service interface for easy maintanance
Contact us

Automatic linear sliding door system for doors up to 140 kg leaf weight

With its slim design, the ECdrive T2 guarantees new design possibilities and an outstanding price-performance ratio. When used in combination with thermally separated profile systems, energy efficiency can be increased. GEZE Cockpit networks this drive system thus creating smart solutions.

Application Areas

  • Single and double leaf sliding door systems
  • Interior and exterior doors with high access frequency
  • Complete solution for entrance areas with GCprofile Therm and fanlight
  • If extra impermeability or energy efficiency are needed
  • Opening widths from 700 to 3000 mm possible
  • Door leaf weight of up to 140 kg per leaf
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass, GCprofile Therm, ESG clamping profile, on-site frame and wooden leaves

Technical data

ECdrive T2
For 1-leaf door systems Yes
For 2-leaf door systems Yes
ISO glass fine-framed Yes
MONO glass fine-framed Yes
ESG clamping profile Yes
Framed leaf (on site) Yes
Wooden leaf (on site) Yes
Depth 190 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 1-leaf with GCprofile Therm and double roller carriage 140 kg
Leaf weight (max.) 2-leaf 120 kg
Leaf weight (max.) 2-leaf with GCprofile Therm and double roller carriage 140 kg
Opening width 1-leaf 700 mm - 3000 mm
Opening width 1-leaf with GCprofile Therm 1500 mm
Opening width 2-leaf 900 mm - 3000 mm
Opening width 2-leaf with GCprofile Therm 3000 mm
Service temperature -15 °C - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Approvals DIN 18650, EN 16005, DIN EN ISO 13849: Performance Level D
